Top-Quality Deluge Valve Control Panel

02.08.24 06:41 AM

Introduction :

Linovate Technologies stands at the forefront as a premier manufacturer of top-quality Deluge Valve Control Panels, delivering advanced fire suppression solutions designed to meet the rigorous demands of high-risk industrial environments. Our panels are engineered with precision to provide rapid response and unparalleled fire control, crucial for protecting valuable assets and ensuring the safety of personnel. Unlike low-quality deluge valve control panels that can fail under pressure, our products focus on reliability and efficiency, ensuring exceptional performance in critical situations. Despite offering top-quality and advanced features, Linovate Technologies is committed to providing cost-effective solutions. Our Deluge Valve Control Panels are competitively priced to ensure that high-quality fire safety is accessible without compromising on performance or reliability.

Key Features :

Advanced Monitoring

Continuous real-time monitoring to ensure system readiness and quick response during emergencies..

Automated Testing

Regular self-checks to maintain functionality and reliability, reducing the risk of failure.

User-Friendly Interface

Easy to operate and maintain, ensuring efficient management by facility personnel.

Robust Construction

Apparently we had reached a great height in the atmosphere, for the sky was a dead black, and the stars.

Key Features

Real-Time Monitoring
- Continuous system status updates ensure readiness and immediate alert in case of fire. Our advanced monitoring capabilities help in promptly identifying and addressing any issues, providing peace of mind and enhanced safety.
Automated Testing
- Equipped with automated self-testing capabilities, our panels perform regular system checks to confirm functionality and reliability. This proactive approach helps prevent unexpected failures and ensures the system remains operational and ready for emergency response.
User-Friendly Interface
- Designed with an intuitive user interface, our panels allow for straightforward operation and maintenance. This ease of use ensures that facility personnel can efficiently manage the system, reducing the risk of human error during critical moments.
Robust Construction
- Constructed to withstand the most challenging industrial conditions, our Deluge Valve Control Panels are built for durability and long-term performance. Their robust design ensures they remain functional and reliable, even in harsh environments.

Technical Specifications

Input Power: 220V AC
Output Contacts: NO/NC for valve operation
Indicators: Power, Fault, Valve Open, Manual Activation
Enclosure: IP65-rated for dust and water resistance, protecting the panel in various environmental conditions
Communication: RS485 for seamless integration with building management systems, enhancing operational efficiency and monitoring.

Applications

Our Deluge Valve Control Panels are versatile and well-suited for numerous high-risk industrial applications, including:

Chemical Plants: Where they manage fire hazards related to volatile chemical processes.
Oil Refineries: Providing essential protection in areas prone to oil-related fire risks.
Power Plants: Safeguarding critical electrical infrastructure and reducing fire damage risks.
Storage Warehouses: Ensuring that valuable goods and materials are protected from potential fire damage.

Benefits of Choosing Linovate Technologies

Rapid Fire Suppression: Our panels enable immediate activation upon detecting a fire, significantly reducing potential damage and enhancing overall safety.
High Reliability: Designed for consistent and reliable performance, our panels ensure that your fire suppression system operates effectively under the most demanding conditions.
Compliance with International Standards: Our products adhere to global fire safety regulations, providing peace of mind and ensuring compliance with industry standards.
Enhanced Safety: Features such as fault monitoring and remote operation capabilities contribute to a comprehensive fire safety solution, ensuring your facility is well-protected.

Why Linovate Technologies?

At Linovate Technologies, we are dedicated to providing innovative and high-quality fire safety solutions tailored to meet specific client needs. Our Deluge Valve Control Panels are a testament to our commitment to excellence, offering unmatched protection and performance in high-risk environments. Backed by robust customer support and a focus on continuous improvement, Linovate Technologies is your trusted partner in fire safety.

Special Features

Single Line Diagram

Operation

Specification

Applications

Learn More

Special Features

Operation Features:

This DV panel will be the electrical interface between the DV and the Site Fire alarm system. The Panel shall monitor itself and all connected input circuits including the supply for fault and shall signal the FAS system accordingly.

In case the Deluge valve Opens (Automatically or Manually) this will cause the pressure switch mounted on the outlet to sense the change in pressure and change state. This in turn will switch on the DV open indication. Along with this panel will switch on its external alarm signal to annunciate the alarm condition on the main FAP or repeater panel.

Manual Operation:

A push button on the DV panel will enable the operator to open the DV manually. When this button is operated the "Manual" indication will come on and the Solenoid mounted on the DV will be switched on. The Audio Visual alarm will also sound.

Remote Operation:

As above in case the DV need's to be opened remotely, A push button or relay contact can be used to signal the "MAIN FAP" indication along with this the Solenoid mounted on the DV will be switched on. The Audio Visual alarm will also sound.

Silence:

The Audio Alarm can be silenced by operating the silence button on the DV panel. When the Air Pressure is restored and the DV closes the Panel will automatically revert to its standby state.

Fault Monitoring:

Fault Monitoring: All wires connected to inputs shall be monitored for Cable open, Short and earth fault. The battery shall be monitored for low or disconnected status if installed. In case of complete failure also the NC Fault contact shall change to NO to indicate to the Main FAP or repeater panel a fault.

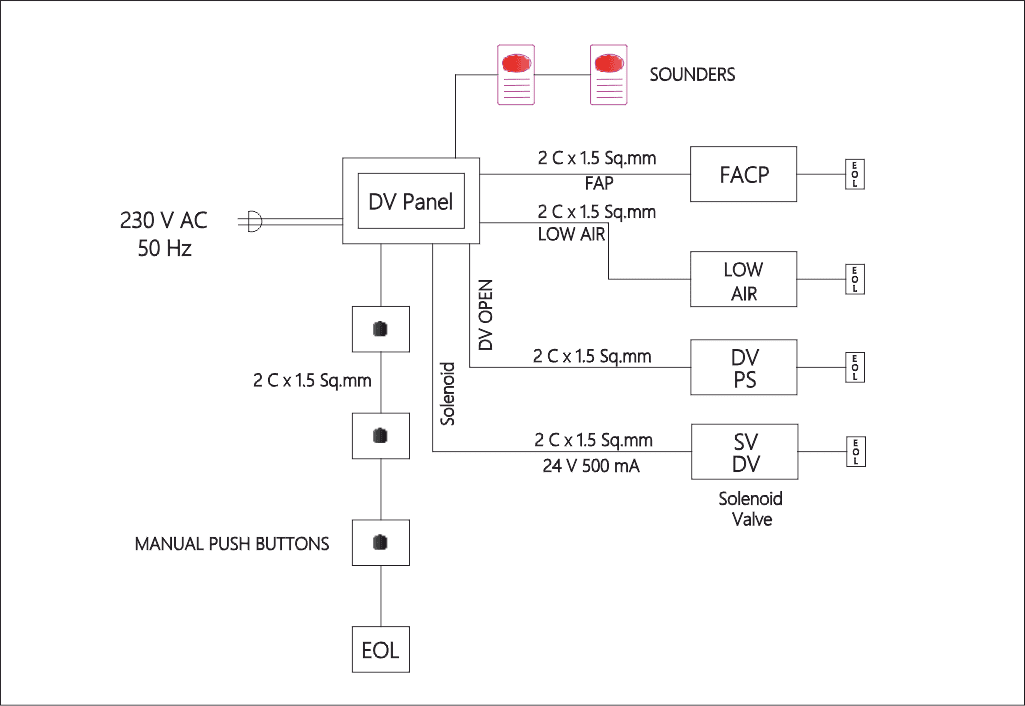

Single Line Diagram

Apparently we had reached a great height in the atmosphere, for the sky was a d

There are 4 inputs to panel.

Low Air(Supervised).
DV Open (Supervised).
Main FAP (Supervised).
Manual Push Button(Supervised).

1 Solenoid Output : 24VDC / 500mA (Supervised).

4 External Sounder Circuits(NOT Supervised).
1 Alarm Relay Potential free Contact Output.
1 Fault Relay Potential free Contact Output.
1 Local Alarm (Buzzer).
Led Indications (Inputs activation status) on Panel.
Led Indications (Inputs cable fault) on Panel.
Led Indications for Power and Battery.
Led Indication for Solenoid cable fault.
1 push button for silence operation(Panel).
1 push button for lamp test (Panel).
1 push button for manual push button (Panel).

Operation

Silver mist suffused the deck of the ship.

1. LOW AIR

Potential Free Contact (NO): Input to Panel.
Cable Open & Short fault indication for this input is provided.
On receiving NO panel will not perform any action.
On receiving NC panel will perform as follows

Low Air alarm led will be ON.
1st external Sounder will be ON: 24V/500mA.
Local alarm(Buzzer) will be ON.
Common Fault Relay will be ON: Provides NC potential free contact.

Silence push button is pressed then External Sounder will be OFF and local alarm will be OFF.

2. DV OPEN

Potential Free Contact(NO): Input to Panel.
Cable Open & short fault indication for this input is provided.
On receiving NO panel will not perform any action.
On receiving NC panel will perform as follows

DV Open alarm led will be ON.
2nd external Sounder will be ON:24V/500mA.
Local alarm (Buzzer) will be ON.
Common alarm Relay will be ON: Provides NC potential free contact.

Silence push button is pressed then External Sounder will be OFF and local alarm will be OFF.

3. Main FAP

Potential Free Contact(NO): Input to Panel.
Cable Open & Short fault indication for this input is provided.
On receiving NO panel will not perform any action.
On receiving NC panel will perform as follows

MAIN FAP alarm led will be ON.
3rd external sounder will be ON: 24V/500mA.
Solenoid will be ON: 24V/500mA.
Local alarm (Buzzer) will be ON.
Common alarm Relay will be ON: Provides NC potential free contact.

Silence push button is pressed then External Sounder will be OFF and local alarm will be OFF.

4. Manual Push Button (Panel)

Push Button on Panel.
When Button is not pressed then panel will not perform any action.
When Button is pressed then panel will perform as follows

Manual Push Button alarm led will be ON.
4th external Sounder will be ON: 24V/500mA.
Solenoid will be ON: 24V/500mA.
Local alarm (Buzzer) will be ON.
Common Alarm Relay will be ON: Provides NC potential free contact.

Silence push button is pressed then External Sounder will be OFF and local alarm will be OFF.

Specification

Mechanical Specifications

Mechanical : Cabinet:400*400*120 - Weather Proof.

Electrical Specifications

Main PSU.: 240V.AC., 50/60 Hz. Optional(110V AC/DC.) Panel Supply:24V@2 Amps.

INSTRUMENT	LOCATION	SIGNAL	FUNCTION
Pressure Switch for:DVP-O1P2 and P2F models.	Air Line	Potential Free Contact.NO	Indication "LOW AIR" with Local Alarm, & ext Fault sig.
Pressure Switch	DV Out Line	Potential Free Contact.NO	Indication "DV OPEN" with Local Alarm, & ext Alarm sig.
Manual Push Button	Panel	Potential Free Contact.NO	Indication "MANUAL" with power to solenoid & ext Alarm sig.
Main FAP	Main FAP or Remote Button	Potential Free Contact.NO	Indication "MAIN FAP" with power to solenoid & ext Alarm sig.
Solenoid Valve	ON Trim	24V or 110V DC or 220/110V AC	Will Operate for Manual Push Button or Main FAP Signal. Note 24V DC is Available within the panel Other Voltages to be provided for by installer.
Fault Relay	Panel	Potential Free Contact NC	Form C contact for external Monitoring at Main FAP or Repeater Panel.
Alarm Relay	Panel	Potential Free Contact NO	Form C contact for external Monitoring at Main FAP or Repeater Panel.

Applications

Our Deluge Valve Control Panels are versatile and well-suited for numerous high-risk industrial applications, including:

Chemical Plants: Where they manage fire hazards related to volatile chemical processes.
Oil Refineries: Providing essential protection in areas prone to oil-related fire risks.
Power Plants: Safeguarding critical electrical infrastructure and reducing fire damage risks.
Storage Warehouses: Ensuring that valuable goods and materials are protected from potential fire damage.

Learn More

To explore detailed information and specifications, please visit our Deluge Valve Control Panel Datasheet.

For a comprehensive overview, download our Deluge Valve Control Panel PDF.
